The Importance of Slab Warm Foundations in Sustainable and Healthy Buildings
In any building, the foundation serves as the structural bedrock — but in sustainable architecture, it carries even greater significance. A well-designed foundation does more than support the structure above; it plays a crucial role in managing energy efficiency, moisture control, indoor air quality, and long-term durability. In ecological building practices, the foundation is viewed not only as a physical base, but also as a thermal and environmental buffer between the building and the ground. One of the most effective and forward-thinking approaches to foundation design in sustainable construction is the slab warm foundation.
What Is a Slab Warm Foundation?
A slab warm foundation—also called a heated slab-on-grade or insulated raft foundation—is a system in which the concrete slab is insulated underneath and sometimes along the sides. This creates a continuous thermal barrier between the ground and the interior of the building, minimizing heat loss and ensuring stable indoor temperatures. This design integrates structure, insulation, and often heating (through embedded radiant systems), making it highly efficient and well-suited to cold or temperate climates.
Advantages of Slab Warm Foundations
1. Exceptional Energy Efficiency
By placing insulation beneath the slab, heat loss to the ground is drastically reduced. The concrete mass acts as a thermal buffer, absorbing and slowly releasing heat. This helps maintain a stable indoor climate and significantly reduces heating energy demand—an essential feature for passive houses and low-energy buildings.
2. Enhanced Thermal Comfort

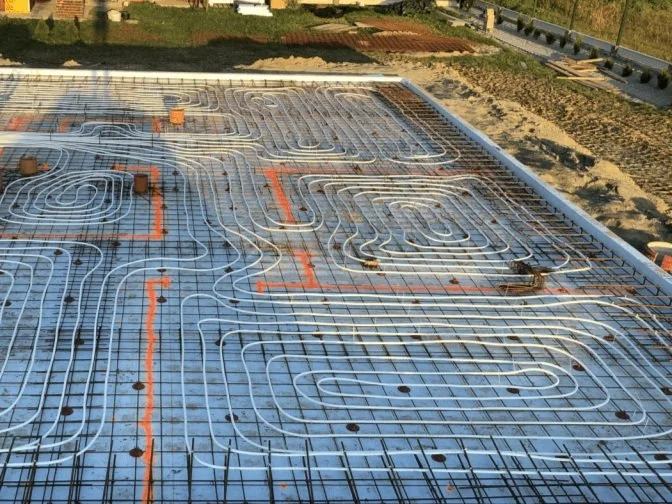

Radiant heating systems are often integrated directly into the slab, ensuring even and pleasant warmth throughout the interior. Unlike conventional heating methods that rely on air circulation, this method offers comfort without drafts or temperature fluctuations.
3. Moisture and Mold Resistance
Proper insulation and vapor barriers prevent moisture ingress and condensation, reducing the risk of mold development and preserving healthy indoor air quality. This is particularly important in airtight buildings where humidity control is crucial.
4. Material and Carbon Efficiency
Slab warm foundations typically require less concrete and steel reinforcement than traditional foundations, which translates to lower embodied carbon. Their integrated design also minimizes the need for additional floor structures, further conserving materials and reducing waste.
5. Streamlined Construction
Combining insulation, structural support, and in-floor heating in one system simplifies the building process. This can accelerate construction timelines and reduce labor costs, while still delivering high performance.
6. Ideal for Ecological and Passive Buildings
These foundations align well with the principles of passive house design, offering airtight construction and eliminating thermal bridges. They support long-term sustainability goals by improving energy performance and creating a healthier indoor environment.

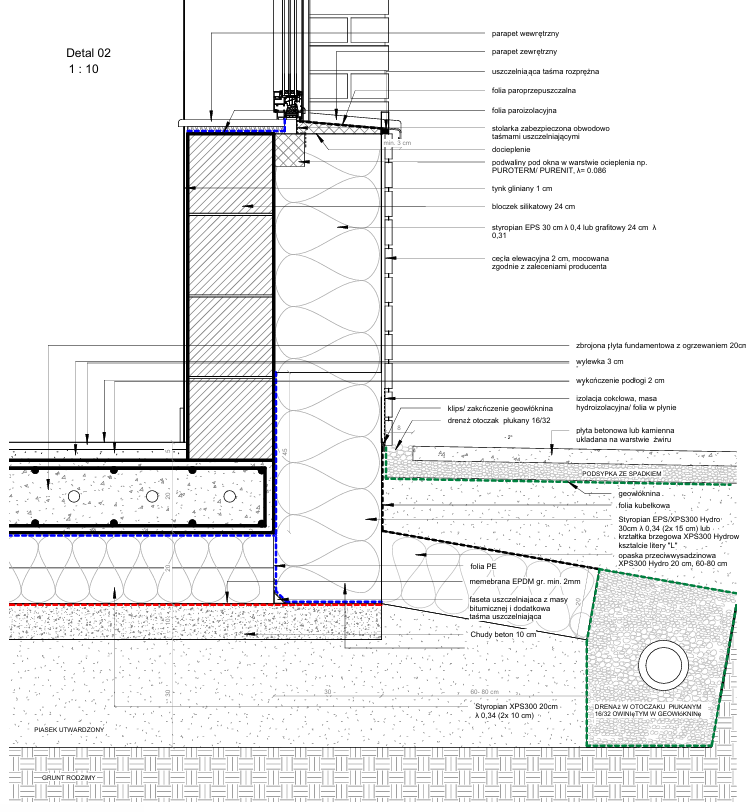

Detail of heated slab warm foundation in energy efficient building in Central Europe. Source phi architecture.
Alternatives to XPS for Insulating Foundations
While XPS (extruded polystyrene) is a common choice for foundation insulation due to its durability and moisture resistance, it is derived from petroleum and has a relatively high environmental footprint. Fortunately, there are several more sustainable alternatives available:
1. EPS (Expanded Polystyrene)
EPS has a lower embodied energy than XPS and is often available in enhanced forms (e.g., graphite EPS) for improved performance. Though it is slightly more permeable to moisture, proper detailing ensures its effective use below grade.
2. Foam Glass (Cellular Glass)
Manufactured from recycled glass, this material is non-toxic, fully inorganic, and highly resistant to water, pests, and fire. It offers high compressive strength and is ideal for applications requiring both insulation and structural support.
3. Agglomerated Cork
This natural, renewable material offers excellent insulation and is biodegradable. Though limited in load-bearing capacity, it can be used effectively in edge insulation or in combination with structural materials.
4. Recycled Foam Boards
Reusing salvaged XPS or EPS boards from other construction sites is a practical and low-impact solution that supports circular economy principles and reduces construction waste.
5. Hempcrete (Perimeter Use)
While not suitable directly under heavy loads, hempcrete can serve as an effective insulating material around the foundation perimeter. It is breathable, sustainable, and works well in natural building systems.
6. Vacuum Insulated Panels (VIPs)
These panels offer extremely high thermal resistance in a thin profile. Though still costly and fragile, they are an emerging option for compact or high-performance applications where space is limited.
Conclusion
The foundation is not just the starting point of a building—it is a central element in the performance, health, and sustainability of the entire structure. Slab warm foundations exemplify this principle by integrating thermal insulation, structural support, and occupant comfort into one efficient system. As ecological and passive design principles become increasingly important, choosing the right foundation—and the right insulation materials—can make a lasting impact on both the planet and the people who inhabit these buildings.
author: Joanna Maria Daoud
