Designing with Nature: Integrating Bioswales and Rain Gardens into Urban Landscapes
As architects and urban designers, we are constantly challenged to balance growth, resilience, and livability. Stormwater, often treated as a problem to be hidden underground, can instead become a catalyst for ecological and civic enrichment. Two powerful tools in this shift toward sustainable design are bioswales and rain gardens.
Bioswales: Linear Green Infrastructure

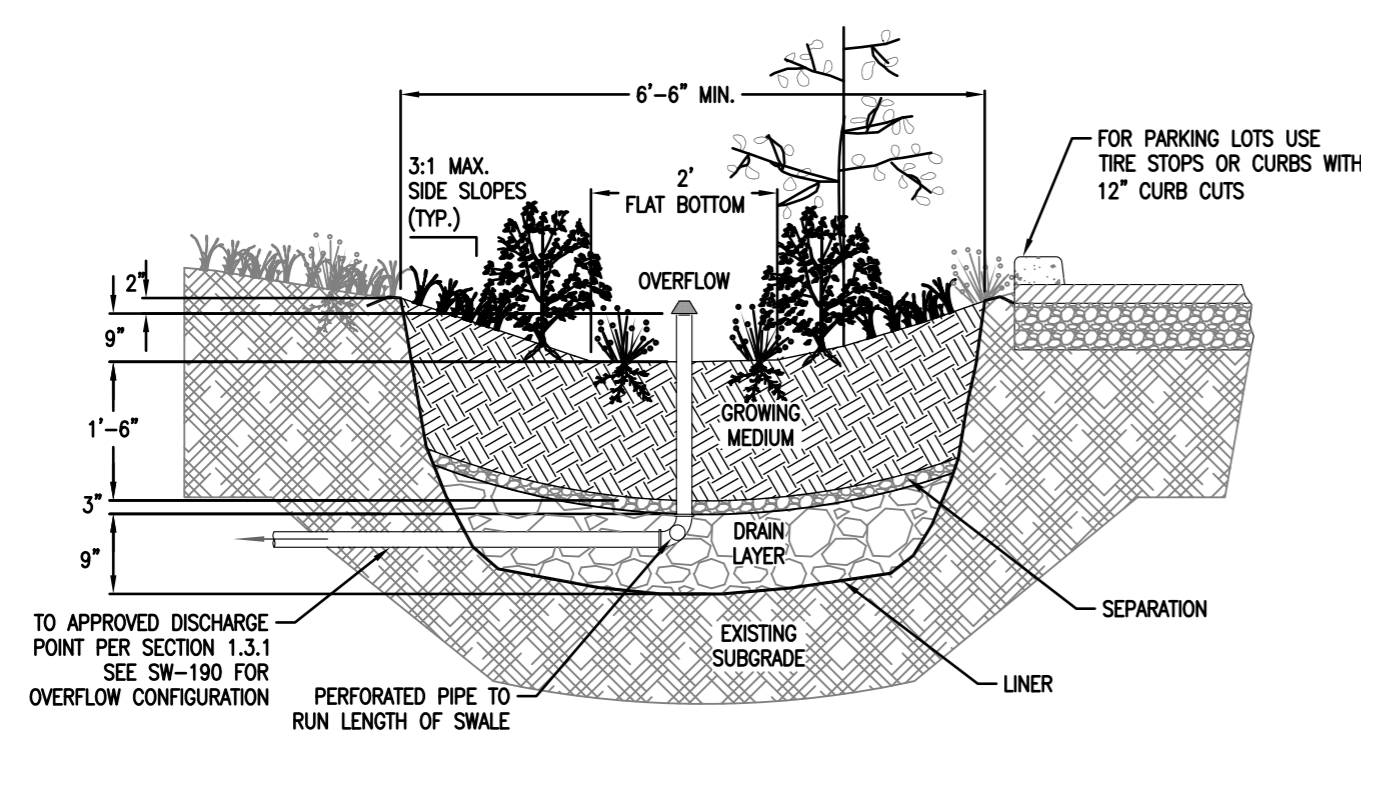

Bioswales are shallow, landscaped channels that capture, slow, and filter stormwater runoff. Their design relies on native vegetation, engineered soils, and gentle slopes to reduce peak flows and remove pollutants before water enters municipal systems. Beyond their utility, bioswales can transform ordinary infrastructure into green amenities.

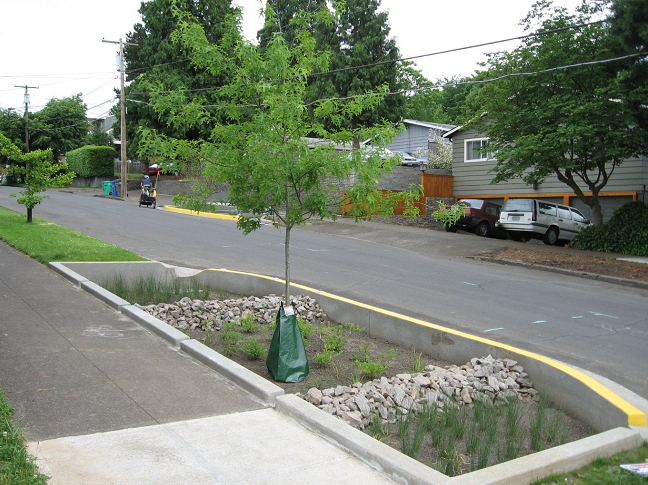

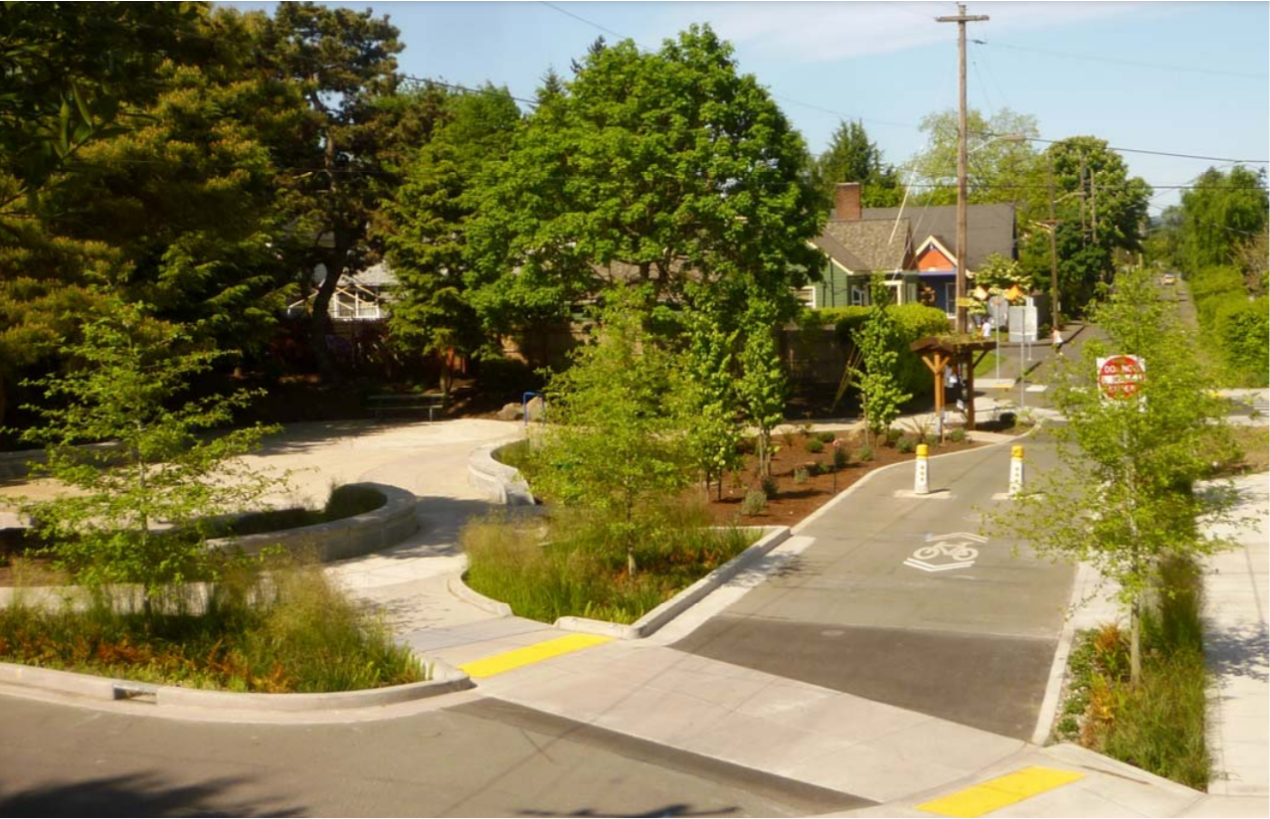

Portland’s “Green Streets” program integrates bioswales along sidewalks and road medians, turning stormwater into a visible urban process. What was once a sterile curb edge is now a lush corridor that protects rivers, improves walkability, and elevates neighborhood identity.
Rain Gardens: Decentralized Water Retention

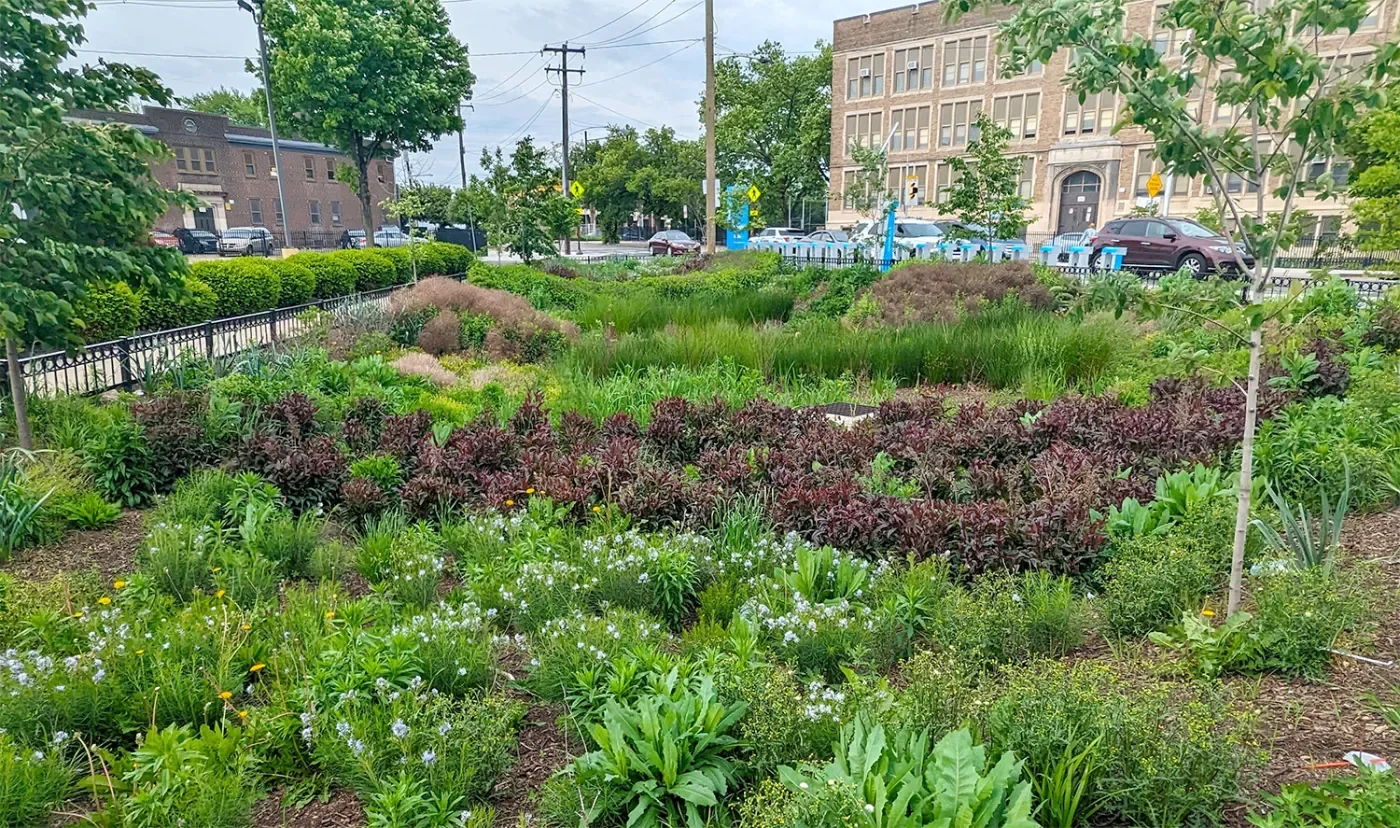

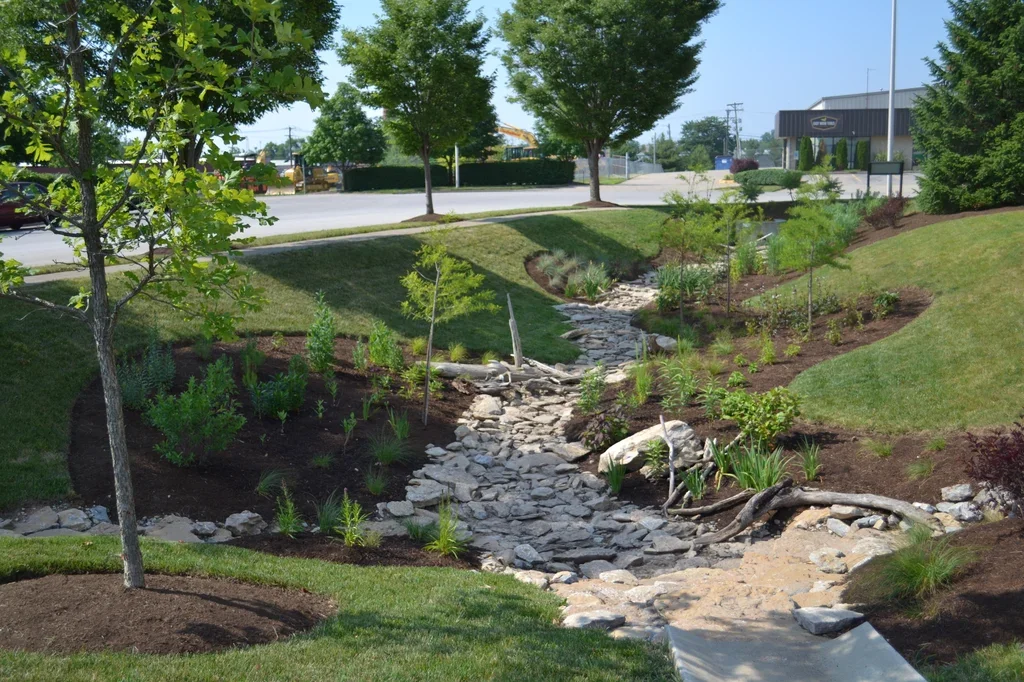

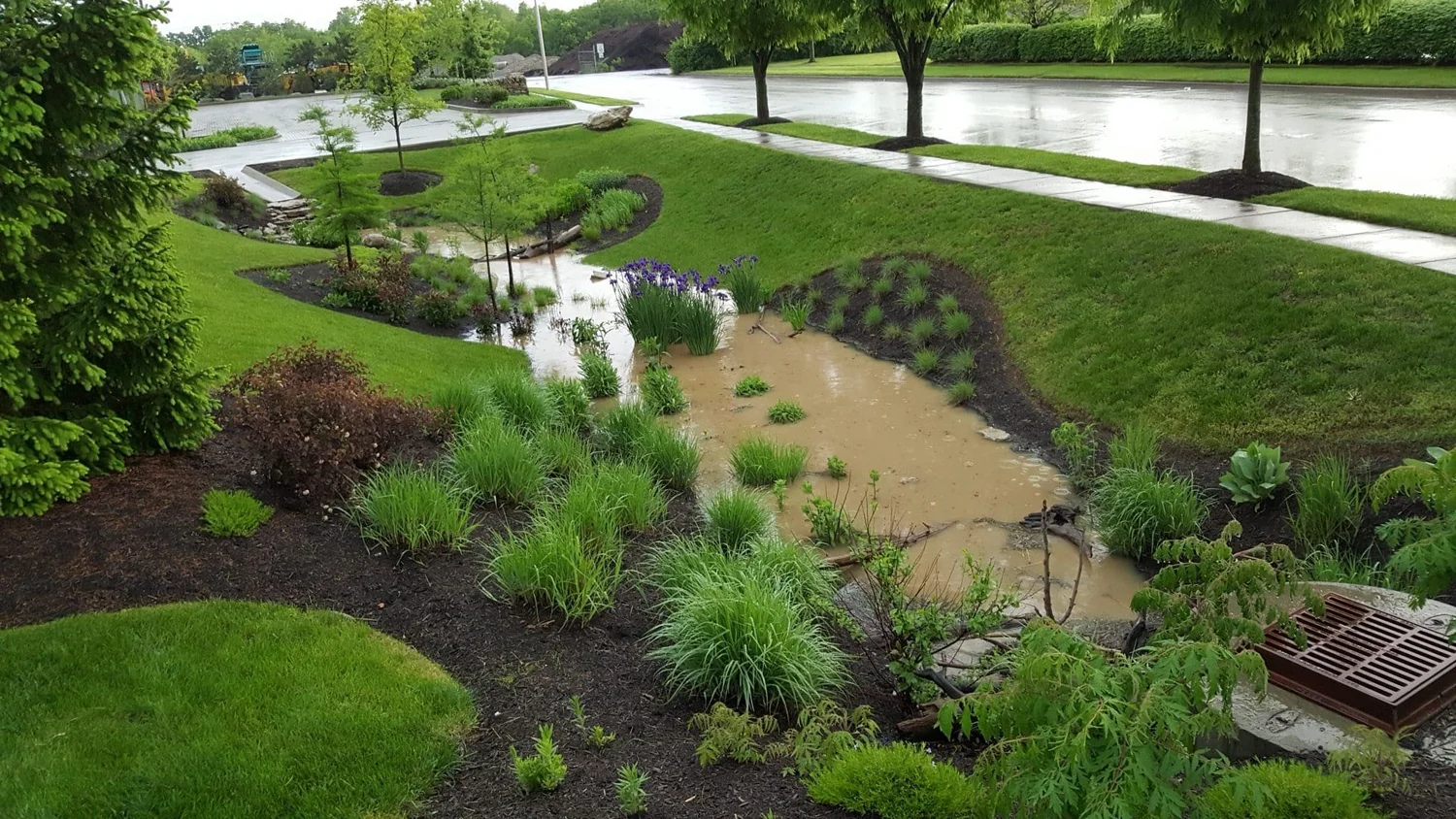

Rain gardens are shallow basins planted with water-tolerant species, designed to infiltrate rainfall close to its source. Scaled for courtyards, plazas, or even residential yards, rain gardens provide ecological benefits while creating intimate green spaces. Their flexibility makes them especially valuable in dense urban contexts.

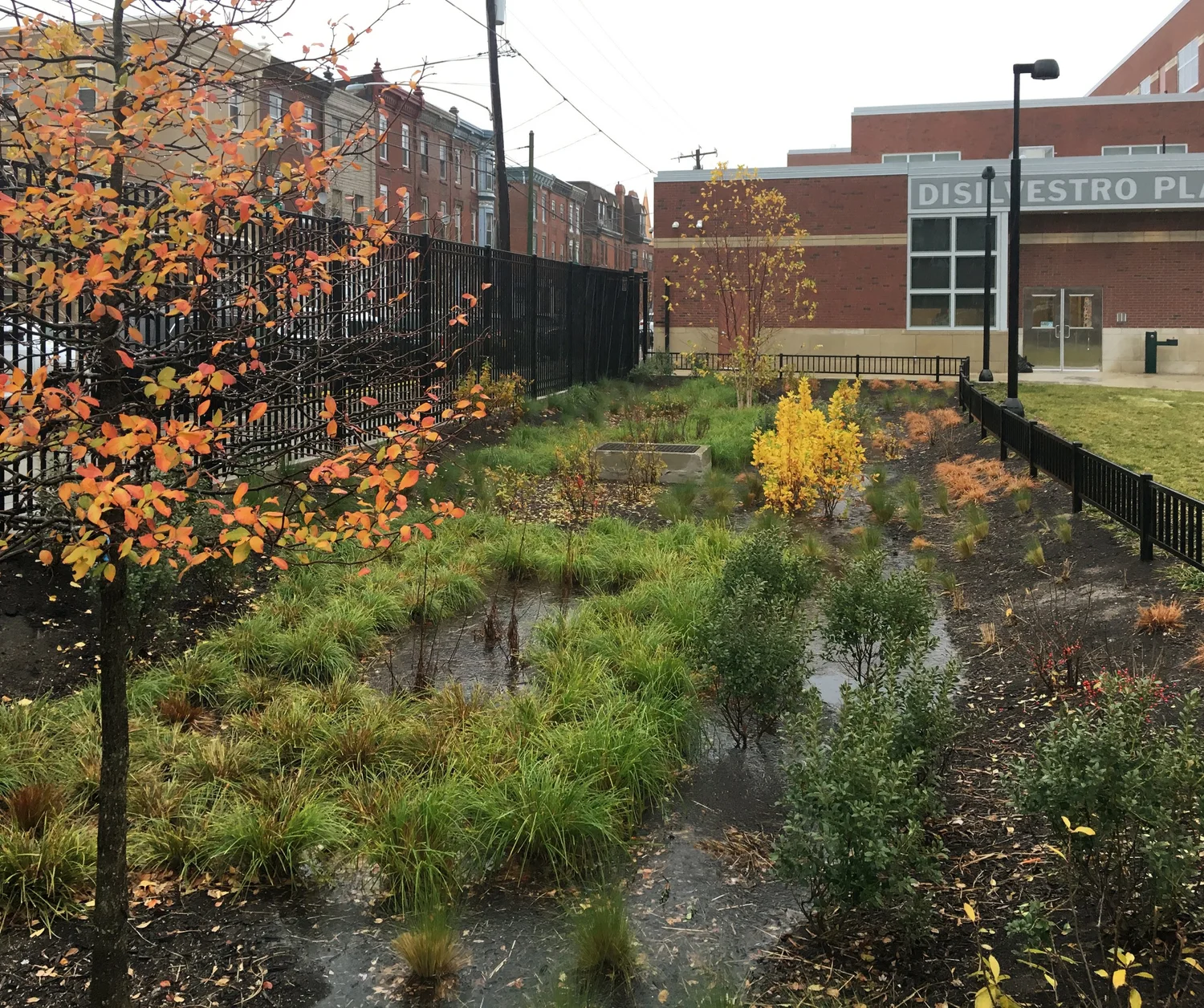

In Philadelphia, the “Green City, Clean Waters” initiative has installed hundreds of rain gardens in schoolyards and community parks. These gardens capture millions of gallons of stormwater annually while providing educational opportunities and much-needed green relief in hardscaped neighborhoods. “Green City, Clean Waters (GCCW) has not only made Philadelphia the first city in the U.S. to meet both state and federal water quality mandates through green interventions, but it will also save the city an estimated $6.5 billion in construction costs over building new pipes.” (Success Stories: Rainwater Champions & Innovators).
Design Integration: Beyond Functionality
For architects, the opportunity lies in weaving these systems into the urban fabric.

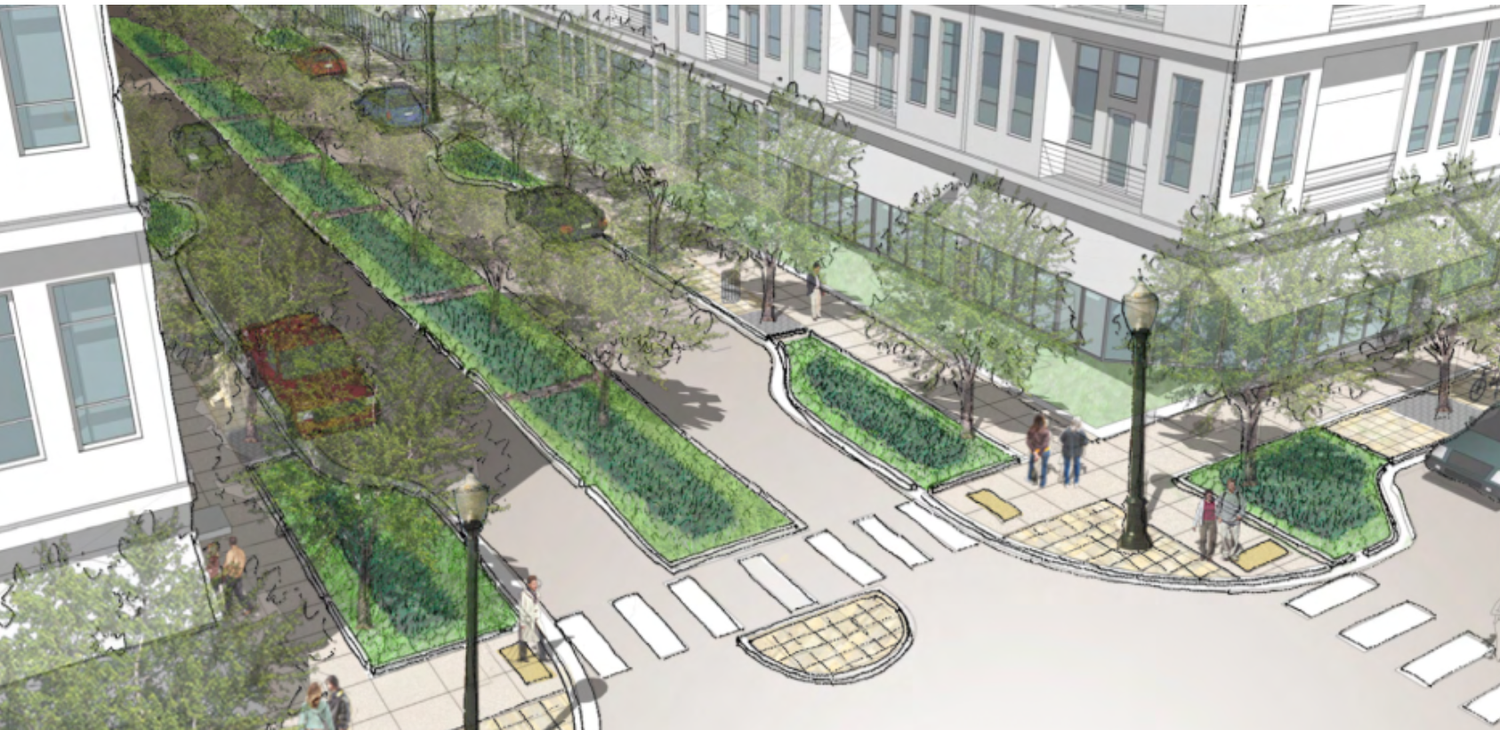

Streetscapes: Bioswales can be integrated into curb extensions, buffering pedestrians from traffic while reducing runoff.
Public Plazas: Rain gardens can be sculpted as focal points, combining seating, shade, and stormwater management in one gesture.
Building Edges: Setbacks and courtyards can be designed to celebrate rainfall through cascading planters or permeable paving that directs water into rain gardens.
When paired with thoughtful materiality—permeable pavements, timber boardwalks, or corten steel edging—bioswales and rain gardens become architectural elements in their own right.
Toward Resilient Cities
By integrating green stormwater infrastructure, we move beyond compliance into placemaking. These systems improve water quality, enhance biodiversity, mitigate urban heat, and create civic identity. Most importantly, they embody a shift: treating stormwater not as waste, but as a design resource that enriches the experience of the city.
Author: Joanna Maria Daoud
